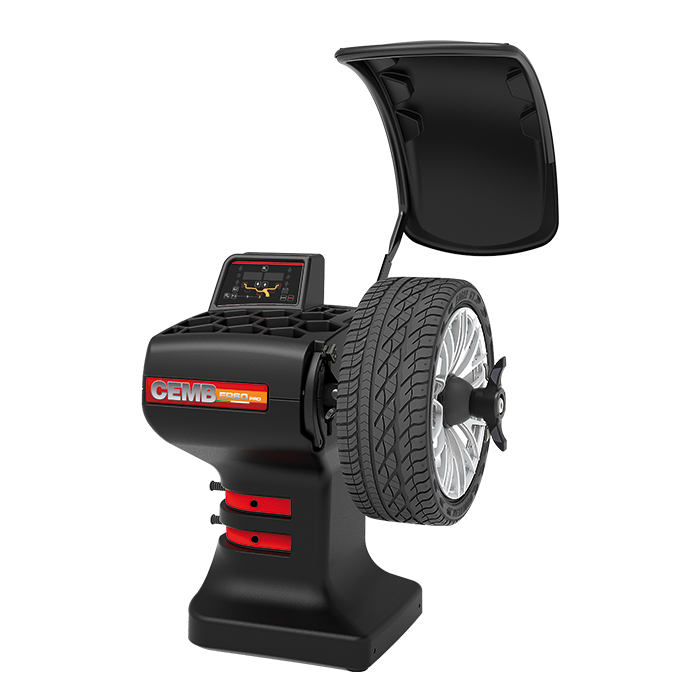

ER60 PRO

Compact but ergonomic, super automatic with Virtual Sonar

The most compact machine in the ErgoFast range. It offers ergonomic solutions unavailable on the market. Fast and easy to use the Virtual Sonar Software enables an immediate detection of parameters of any wheel.

Ergonomic Design

The ErgoFast range of balancing machines has been developed to offer the operator the best possible working conditions. Every tool in a handy position, total access to internal part of rim, all accessories within reach and touch panel are only but a few of the advantages developed for our end users.

Detection of wheel data

The automatic gauge enables detection of distance and diameter (from 12″ to 28″) with relative activation of desired balancing program (clip-on or stick-on weights). No error due to manual inputs possible.
The machine enables the operator to work according to his preferences. The correct application of counterweights can be selected in two different modes: with the accuracy of position repeater or the conventional 12 o’clock position.

Virtual Sonar

Virtual Sonar is the new CEMB software for a 3D wheel measurement which enables, in the absence of an actual sonar device, to detect the rim width. After having detected the first correction plane thanks to the automatic gauge, Virtual Sonar calculates the position of the external plane, according to the measured unbalance and the tolerance calculated with AutoAdaptive mode.

AutoAdaptive Mode

The innovative tolerance calculation system AutoAdaptive Mode is based on the evaluation of the residual imbalance limit value corresponding to an acceptable perceived vibration.  For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. AutoAdaptive Mode grants the highest comfort when driving.

Automatic Approach

Once the measuring launch is completed, thanks to the Automatic Approach system, the wheel automatically stops around 15° from the exact point of application of the counterweight, allowing the operator to position it correctly with a little movement.

Adhesive counter-weights positioning with laser beam

Wheel locked in position for weight applications and laser beam indicating position guarantee an easy and extremely quick balancing operation.

Heavy-Duty

The entire range of CEMB balancers is manufactured to the strict high standards imposed by the company. Heavy duty batch balancing use doesn’t hamper even the smallest of CEMB balancers. Thanks to this sturdiness, the choice of an appropriate model is not subject to intensity of use but only to service requested. Each model differs from the other in levels of process automation and analysis capability effect on wheel.

Single phase power supply 115 / 230 V 50 / 60 Hz
Max. absorbed power 0,15 kW
Balancing speed 100 rpm
Measuring cycle for 15 kg (33 lb) wheel 4.7 s
Measurement uncertainty ± 0,5 g
Resolution 1 g
Average noise < 70 dB (A)
Rim width setting range 1.5” ÷ 20” or 40 ÷ 510 mm
Rim diameter setting range 10” ÷ 30” or 265 ÷ 765 mm
Max. wheel weight < 75 kg
Machine weight 120 kg

UC20/GL40 41FF034422

Standard adapter set with 3 cones, Ø45÷110mm and quick locknut GL40.

Zero gravity effect – Wheel loading and removal without effort or adjustment

PERFECT CENTERING

Wheel automatic lifting. Ideal centering and more accurate balancing

QUICK

Quicker than any other traditional lift. A single pedal controls the whole working cycle.

AUTOMATIC

Electronic system with PLC.

UNIVERSAL

Applicable to any CEMB balancing ma

RL cup 41FF79255

Large diameter plastic cup with rubber ring for alloy rims protection (used on GL/GLM).

UH20/2 41FF42048

For wheels 3,4,5,6, holes (95÷210 mm pitch circle Ø) with/without central hole (Renault, Peugeot and Citroën). Back centering double cone for high precision. Centering error pratically halved compared to similar adaptors on the market.

Peugeot – Citroën kit 41FF73171

High precision set of 1 bush Ø 60 + 2 cones (Ø 62÷68mm and Ø 54÷60mm). Developed on Peugeot and Citroën specs.

VL/2 cone + G36 disc 41FF86174

Kit for light truck wheels (Ø 97÷170mm centre hole).

Renault kit 41FF77152

High precision set of 5 bushes (Ø60 / 66 / 71 / 88 / 129,9mm). Developed on Renault specs.

MT cone 40FF57321

High precision stepped cone for Porsche – Audi – Volkswagen – Opel – BMW Smart and other brands. (Ø56,5 / 57 / 66,5 / 72,5mm centre hole).

Mercedes kit 41FF88003

High precision set of 3 cones (Ø57- Ø66,5 -Ø84/85 mm) + Back spring. Developed on Mercedes Benz specs.

SR4 – SR5 – SR5/2 – SR/USA

Stud adapter for rim protection and high precision centering for 4 or 5 holes rims. With studs which use two piece spring washers which guarantee a pressure uniformity on all points.
